Peak Value Detector II (CB19402E)

Details
Written by: Newton C. Braga

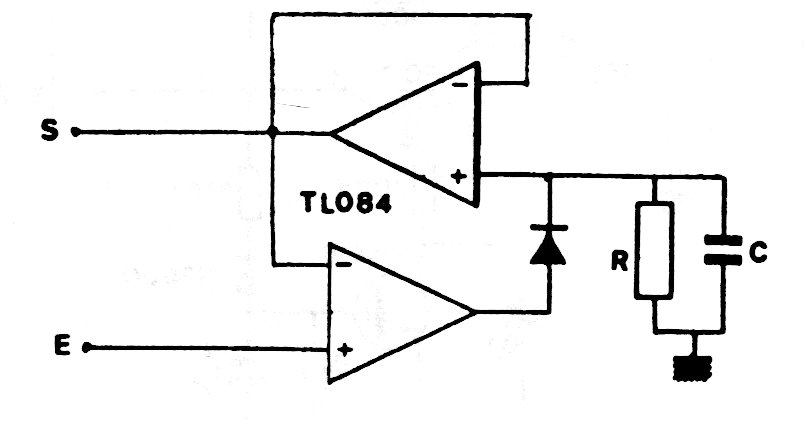

This circuit detects when a signal reaches its peak value. The source must be symmetrical and equivalent operational amplifiers can be used. This circuit was found in an old European publication.
