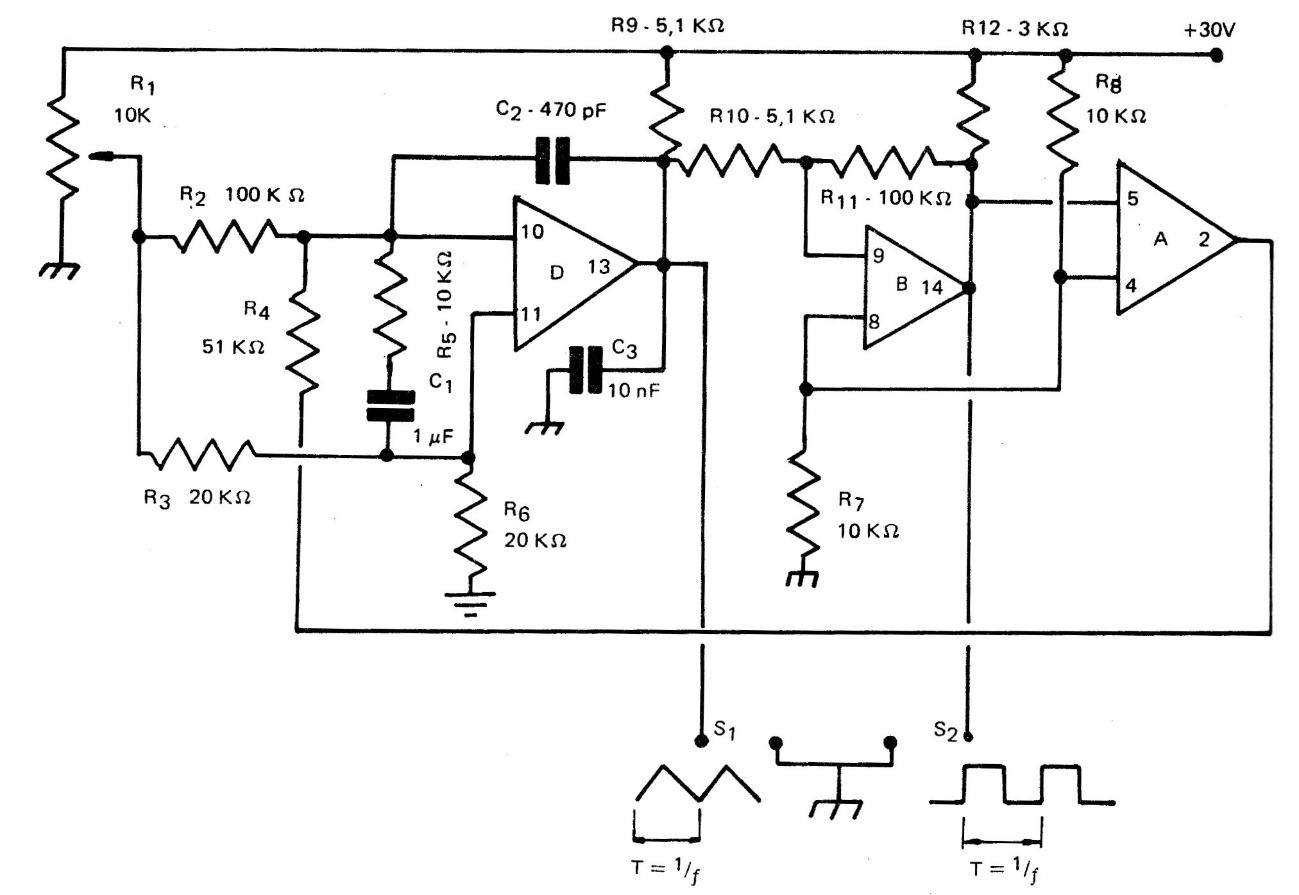

This circuit, which appears with variations on the website, is from European documentation from the 70s. The circuit generates rectangular and square signals, and the frequency range depends on the capacitors reaching 100 kHz. The circuit can be powered by lower voltages.
