Instrumentation Rectifier (CB19750E)

Details
Written by: Newton C. Braga

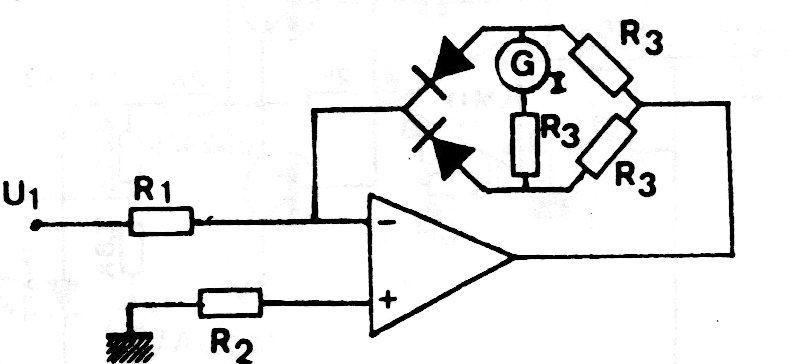

This circuit can make use of almost any operational amplifier and the diodes are for general use. It is intended to excite an analog instrument.
