Unijunction Time Base (CB19138E)

Details
Written by: Newton C. Braga

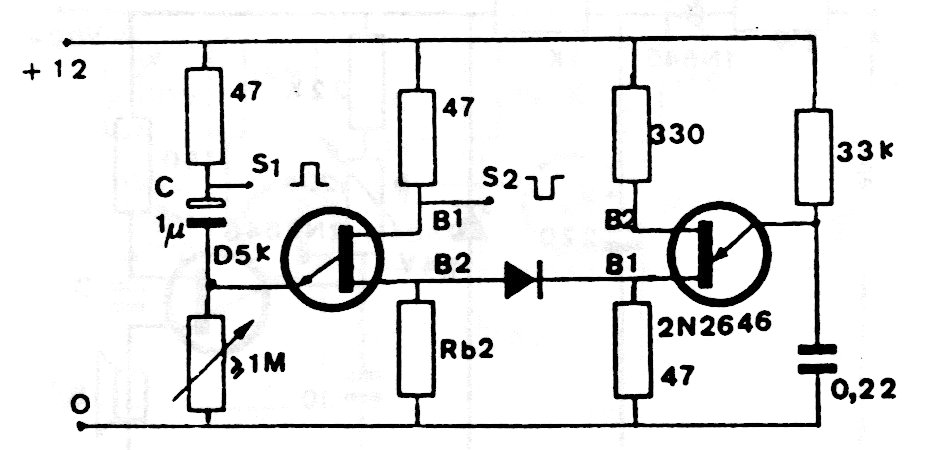

We found this time base of 0.1 to 90 seconds in a circuit manual from the 90s. The single-use transistors used are common and the frequencies given by the adjustment by the potentiometer.
