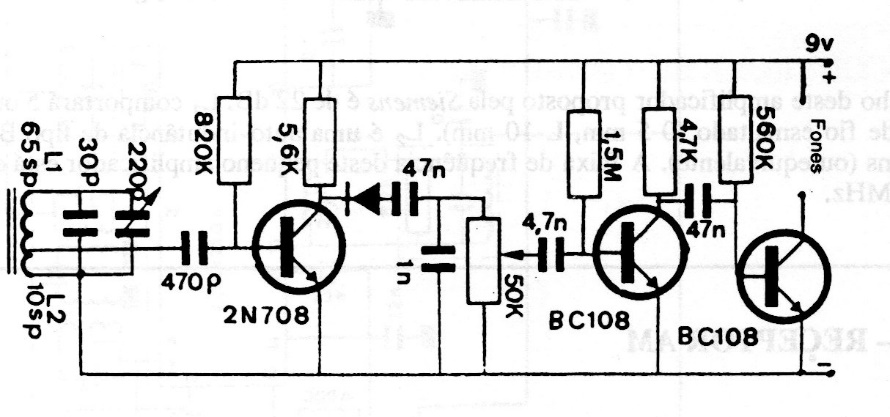

The first transistor can be the BF494 and the other BC548 on this MW radio found in a documentation from the 90s. The circuit must use high impedance headphones and is powered by a 9 V battery. For stronger stations, it is not necessary to use an external antenna.
| Clique na imagem para ampliar |
