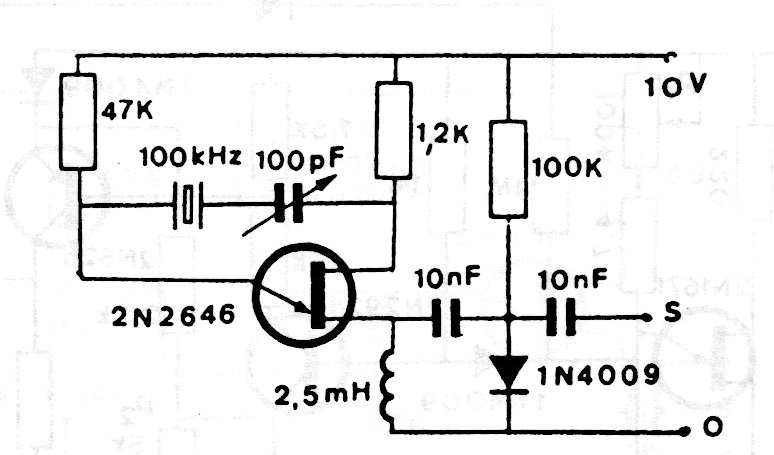

This oscillator uses a crystal to set the frequency. The operating limit of the unijunction is in the order of 100 kHz. Power supply can be between 10 and 20V.
| Clique na imagem para ampliar |
Crystal Unijunction Oscillator (CB19137E)
- Details
- Written by: Newton C. Braga
