Power CMOS Shield (CB19763E)

Details
Written by: Newton C. Braga

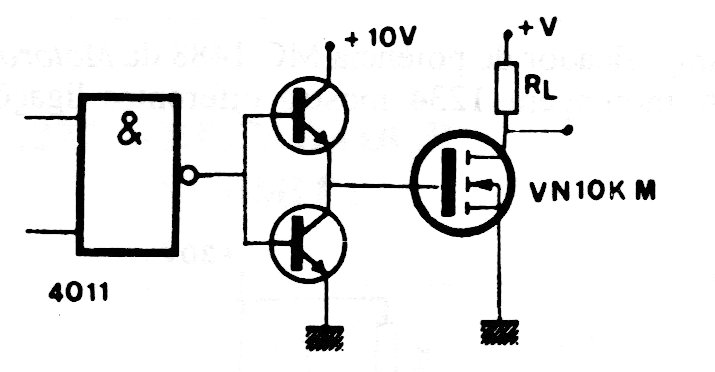

Bipolar transistors are types of general use like BC548, while the power MOSFET can be of any type depending on the current and voltage in the load. The circuit is from old documentation.

.


| Clique na imagem para ampliar |
