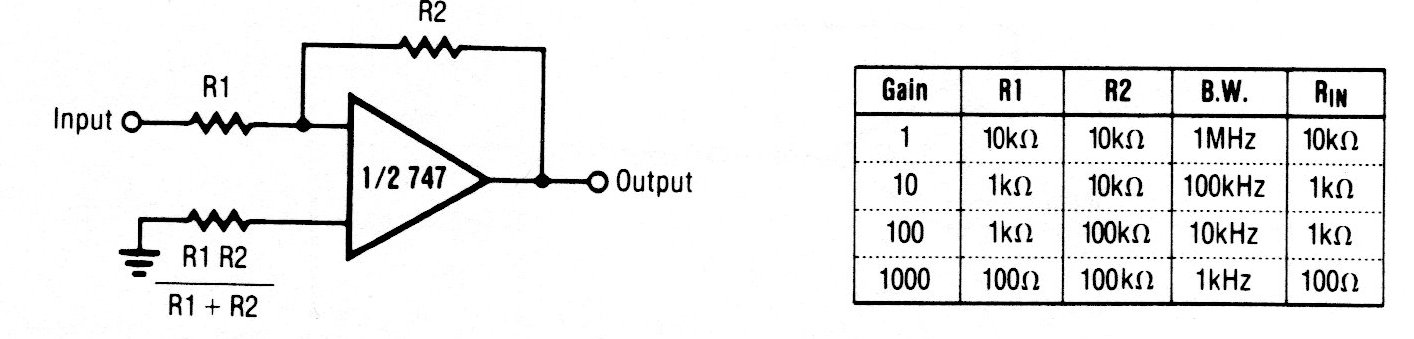

This is the traditional configuration of an inverter amplifier with operational. The operational amplifier taken as an example is rare today, but the circuit is valid for others and on the side, we have a table with the components for various gains and frequency ranges.
| Clique na imagem para ampliar |
