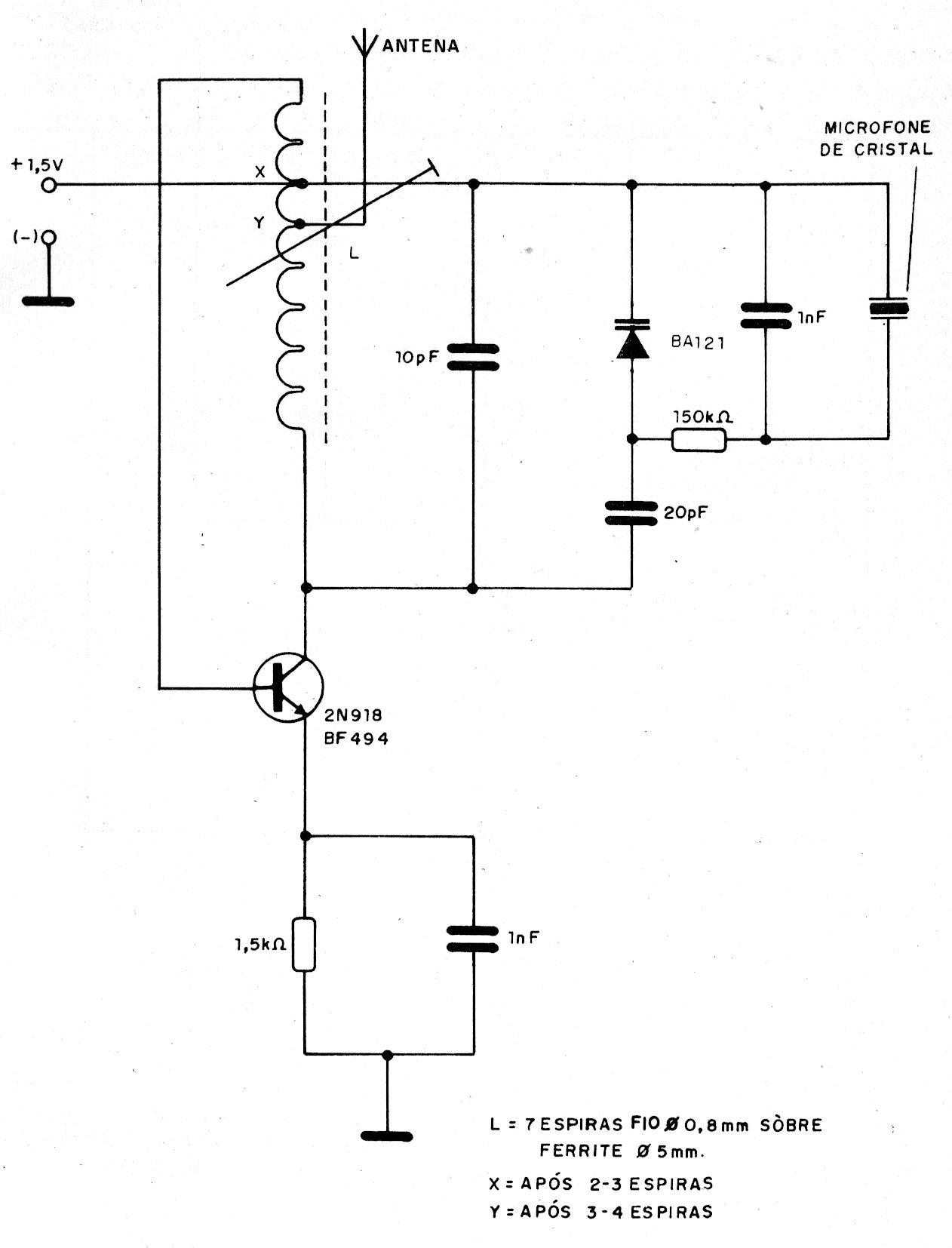

This circuit works with only one battery, providing a range of a few tens of meters. We found it in a spy book from the 80s. The characteristics of the coil are given next to the diagram. The antenna is 15 to 30 cm long.
| Clique na imagem para ampliar |
