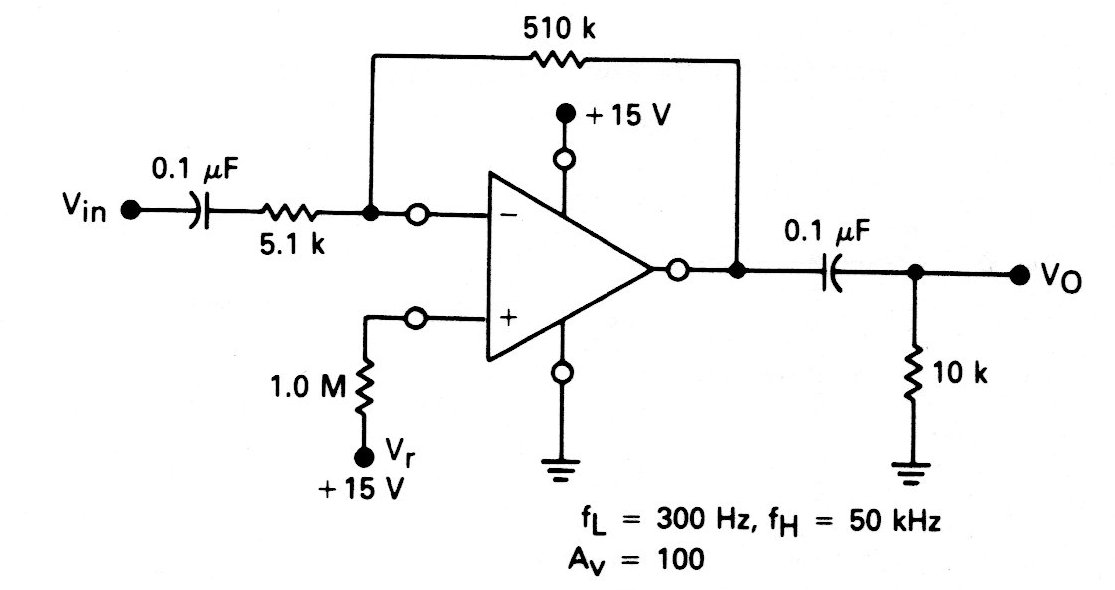

This configuration is from a Motorola circuit manual. It appears elsewhere in this section and can be implemented with virtually any type of operational. The supply voltage depends on the operating mode used.
| Clique na imagem para ampliar |
Gain 100 Inverter Amplifier (CB19845E)
