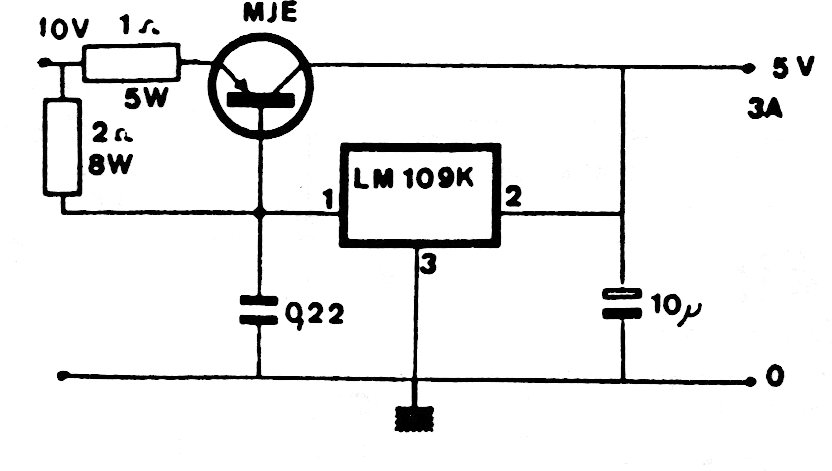

The power transistor of this circuit can also be the TIP42 mounted on a good heat sink. The circuit is from old European documentation and the integrated circuit used is not very common today.
