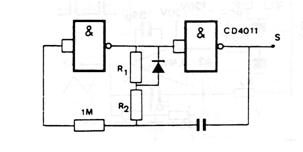

This circuit is asymmetric with the mark-space relationship determined by R1 and R2. The diode can be a general-purpose type and the circuit also works with 4001. The pinout for 4011 is found in several other articles in this section and website.
Astable NAND CMOS III (CB19540E)
- Details
- Written by: Newton C. Braga
