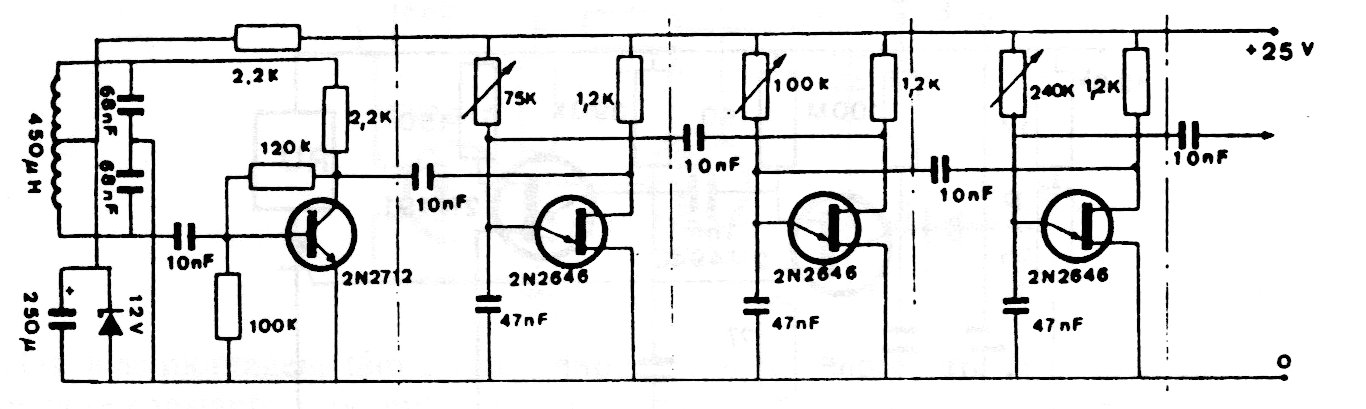

We found this divider in a circuit manual from the 90s. The circuit is intended for operation with low frequency signals. Each stage divides the frequency by 2 in this application. The first stage is an oscillator with a bipolar transistor.
