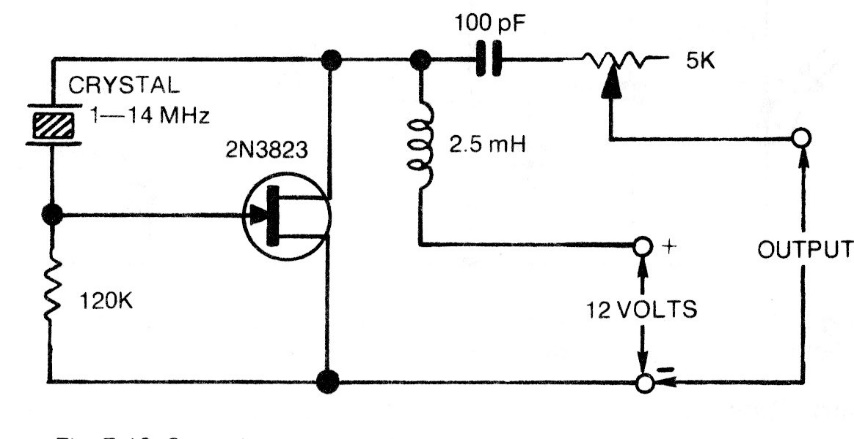

This typical crystal oscillator configuration can generate signals up to a few tens of megahertz depending on the transistor used. The power supply depends on the transistor. Equivalent FETs like BF245 can be used.
| Clique na imagem para ampliar |
FET Crystal Oscillator (CB19580S)
- Details
- Written by: Newton C. Braga
