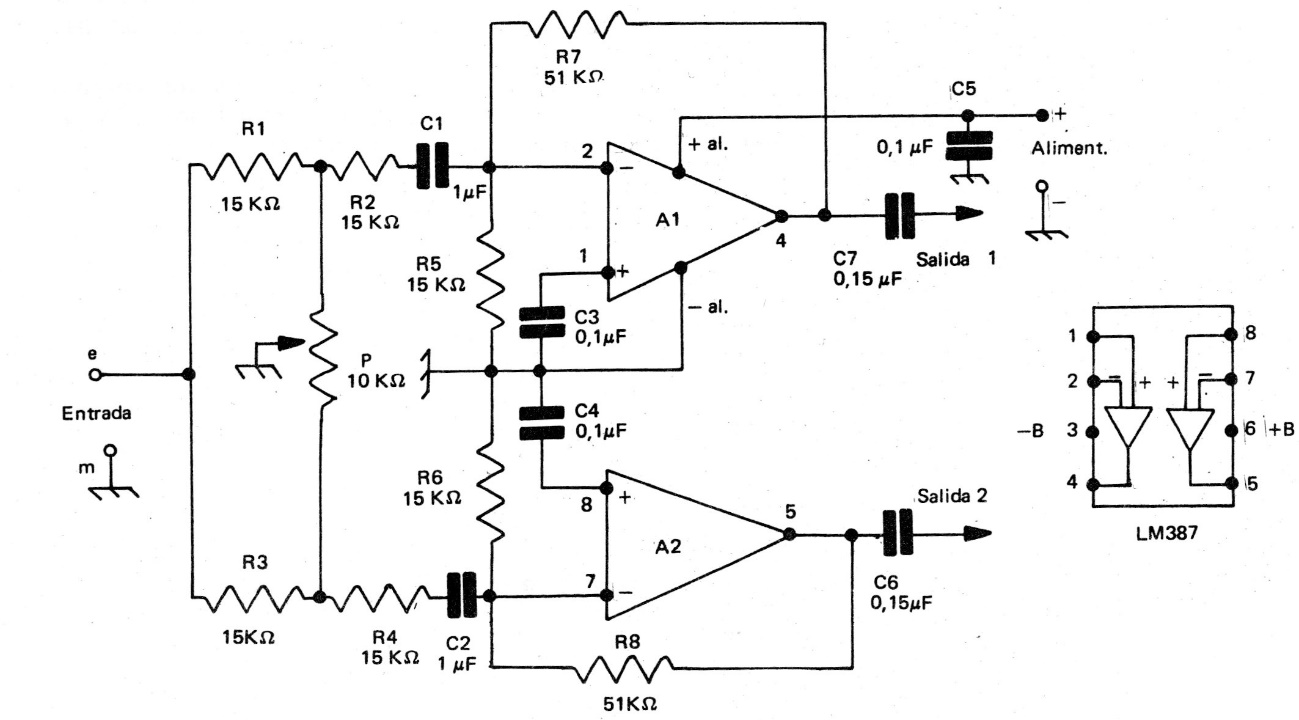

The dual operational used in this sound effect that separates the signal into two tracks is not common today. The circuit is from 1970s documentation, but it can be adapted to work with more modern operational. The power supply must be symmetrical from 12 to 15 V, but if a more modern operation is used, it can be of a lower voltage.
