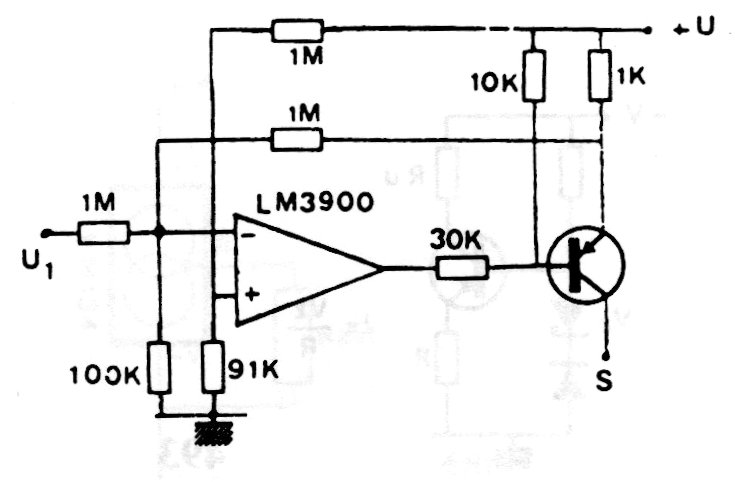

This circuit was found in documentation from the 1980s. The transistor depends on the desired current intensity in the load. The intensity of this current is controlled by the input voltage.
| Clique na imagem para ampliar |
Voltage Controlled Current Regulator I (CB19943E)
- Details
- Written by: Newton C. Braga
