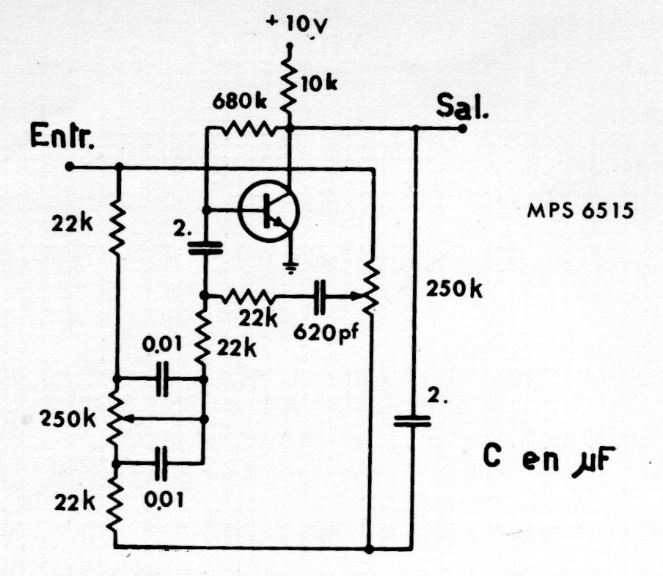

Tone Control (CB19236E)

Details
Written by: Newton C. Braga



This circuit is from a 1972 Motorola publication. The used transistor can still be found, but it can be used equivalent. The circuit is powered by the amplifier with which it must operate.
