Power Control (CB19813E)

Details
Written by: Newton C. Braga

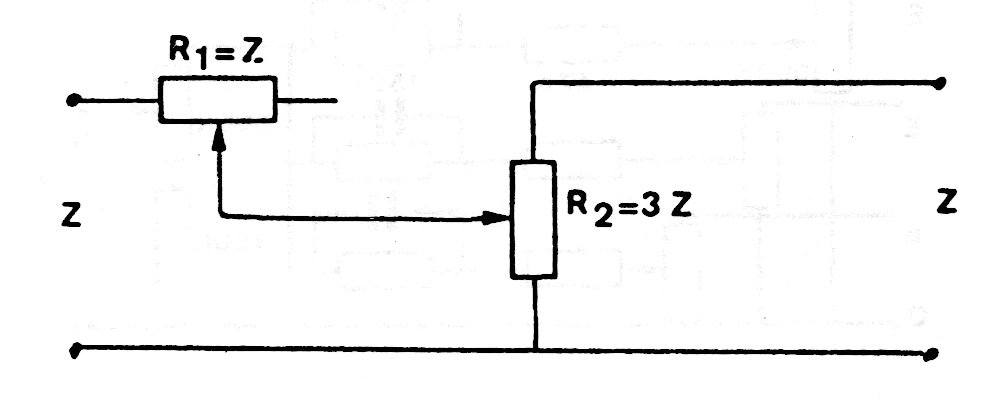

This power control for powers up to about 10 W uses wire potentiometers in an arrangement that allows to maintain the impedance. The circuit is from old European documentation.
