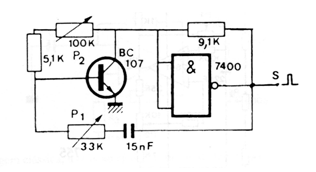

This circuit generates pulses from 0.5 Hz to 500 kHz, adjusted by potentiometer P2. The transistor can be the BC547 and the supply voltage must be 5 V. The circuit is from 70's documentation.
TTL Pulse Generator (CB19286E)
