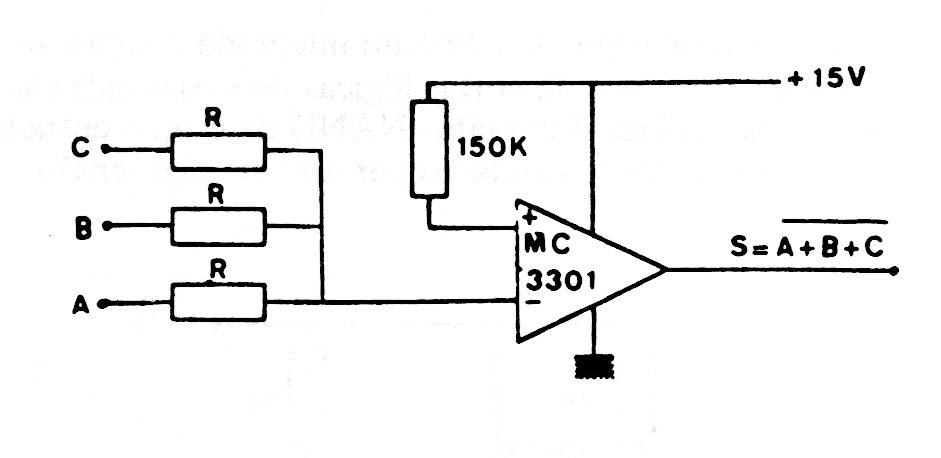

This NOR gate uses an uncommon operating system today but can be implemented with more modern operating systems. The voltage depends on the logic and the circuit may have more inputs. One application is as a shield for microcontrollers if powered by 5 V.
| Clique na imagem para ampliar |
