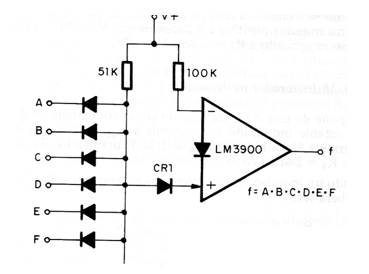

The diagram shows an AND gate implemented with an LM3900 transconductance operational. The circuit is from a manual of operational amplifiers from the 90's. The supply voltage must be made according to the logic in which the port will be applied.
AND gate LM3900 (CB19126E)
- Details
- Written by: Newton C. Braga
