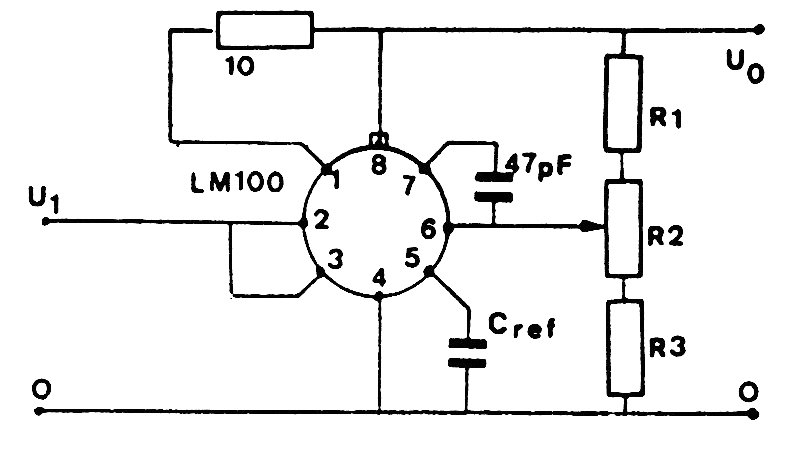

The LM100 integrated circuit is quite old, still of a metallic enclosure type. The circuit shown in the figure is for 25 mA and the splitter network with resistors allows to adjust the output voltage. Typical values for R1 and R2 are 2k2 and for the 10k trimpot.
