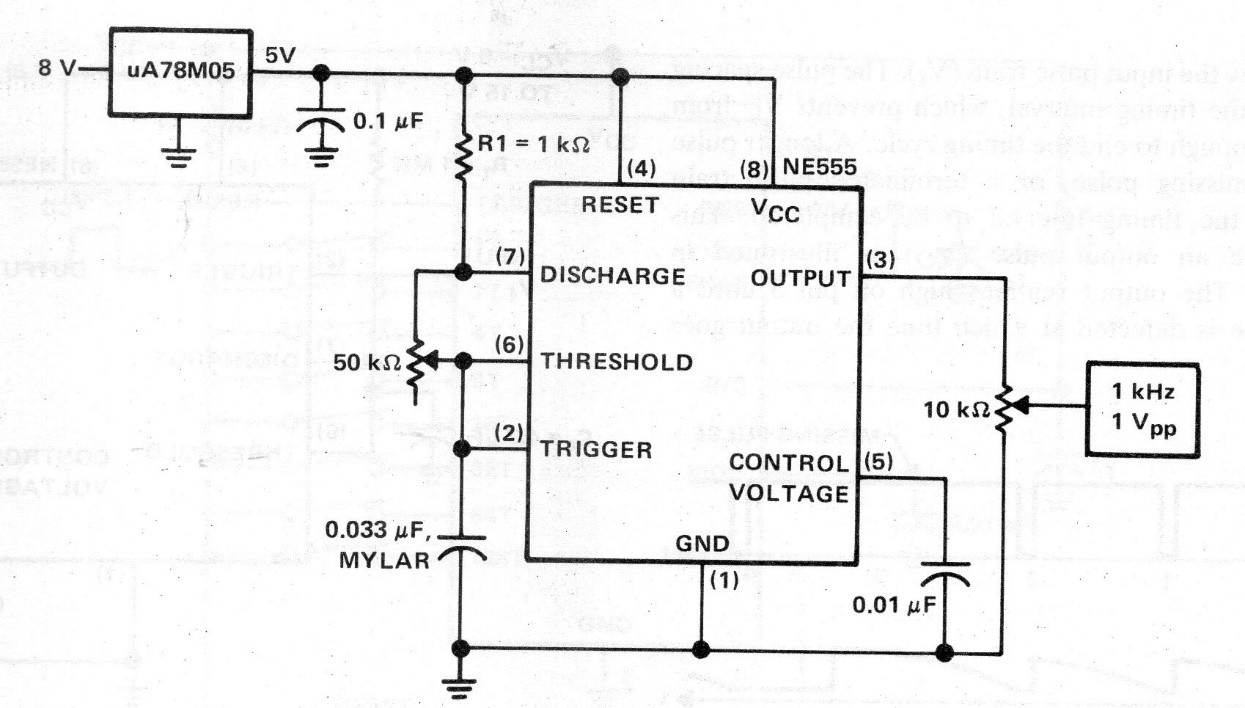

We found this circuit in a Texas Instruments application manual. The circuit provides a rectangular reference signal adjusted in intensity and frequency in the potentiometers, for oscilloscope adjustments.
| Clique na imagem para ampliar |
Oscilloscope Calibrator 555 (CB19024E)
- Details
- Written by: Newton C. Braga
