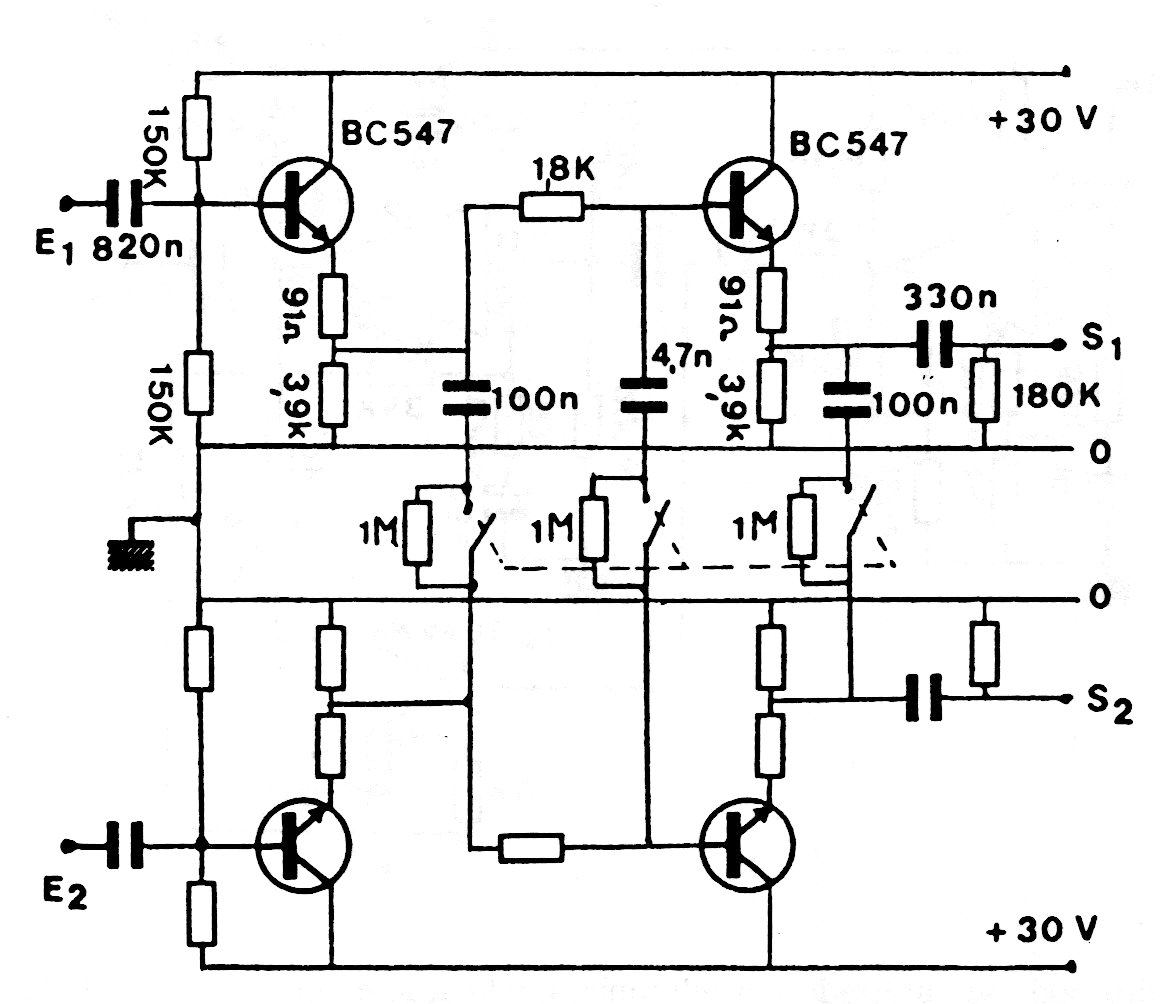

This circuit, which we find in a documentation from the 70s, filters out the Ru [occurring in stereo FM broadcasts. It operates by canceling the noise of the right channel by its phase inversion in relation to the left channel. The circuit is old, but it can be applied to other modern audio systems where there is a problem with noise on both channels.
| Clique na imagem para ampliar |
