OR and AND function (CB19889E)

Details
Written by: Newton C. Braga

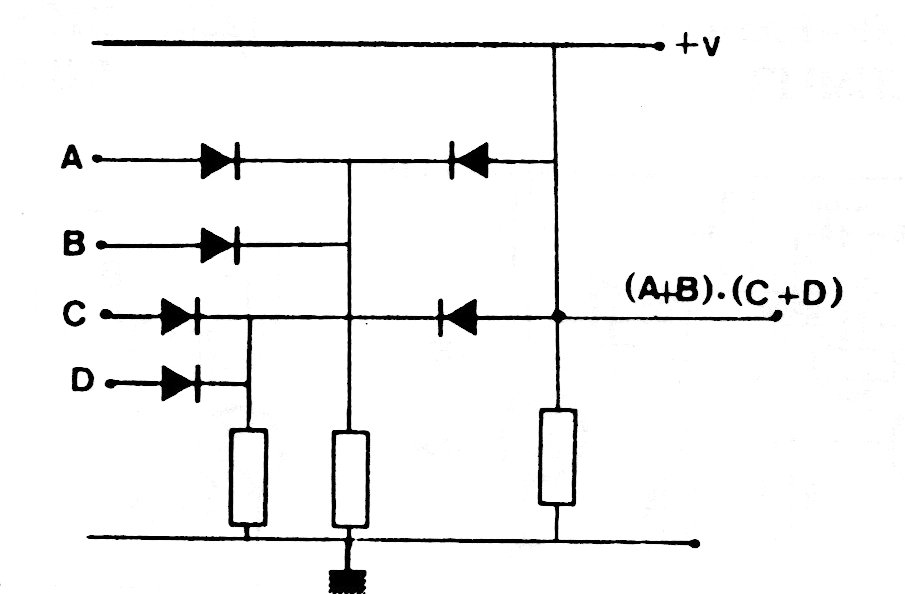

In this circuit, which uses only diodes, we have both simultaneous functions. The diodes are general-purpose types and the resistors have typical values of 2k2.
