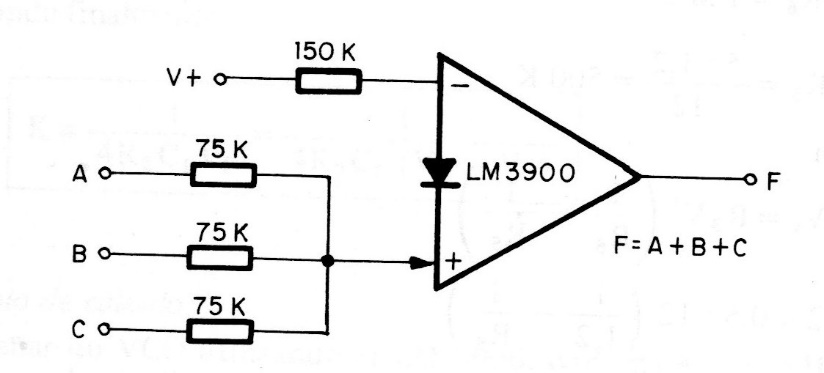

An OR gate can be implemented with an LM3900 transconductance operational amplifier. The circuit is from a 90s linear integrated manual. The circuit must be supplied with voltage according to the logic used.
| Clique na imagem para ampliar |
OR gate LM3900 C (CB19125E)
- Details
- Written by: Newton C. Braga
