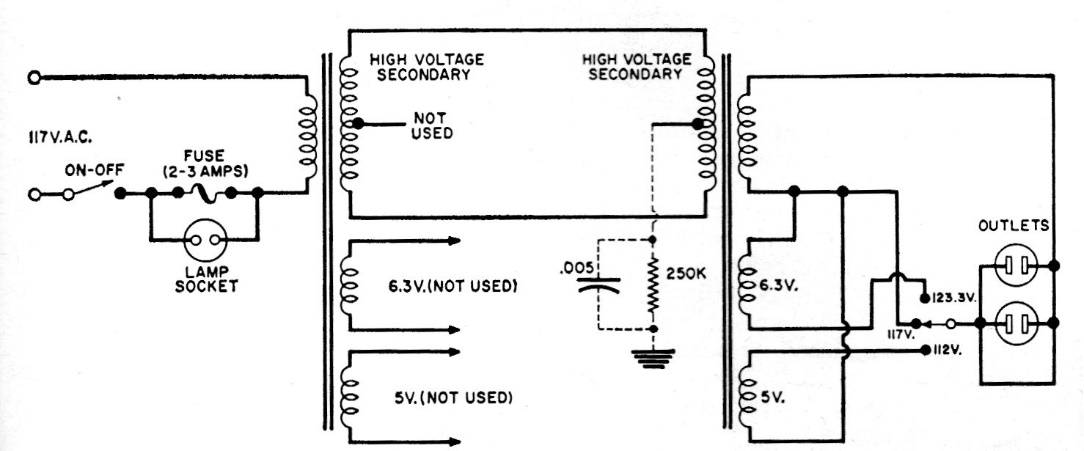

This interesting source or isolation transformer also allows to vary the output voltage by connecting the windings in series in phase or in opposition to add low voltages. The circuit uses power transformers that can be used from old tube equipment. The maximum current depends on the transformers. The two transformers must be the same.
