CRT Amplifier (CB19198E)

Details
Written by: Newton C. Braga

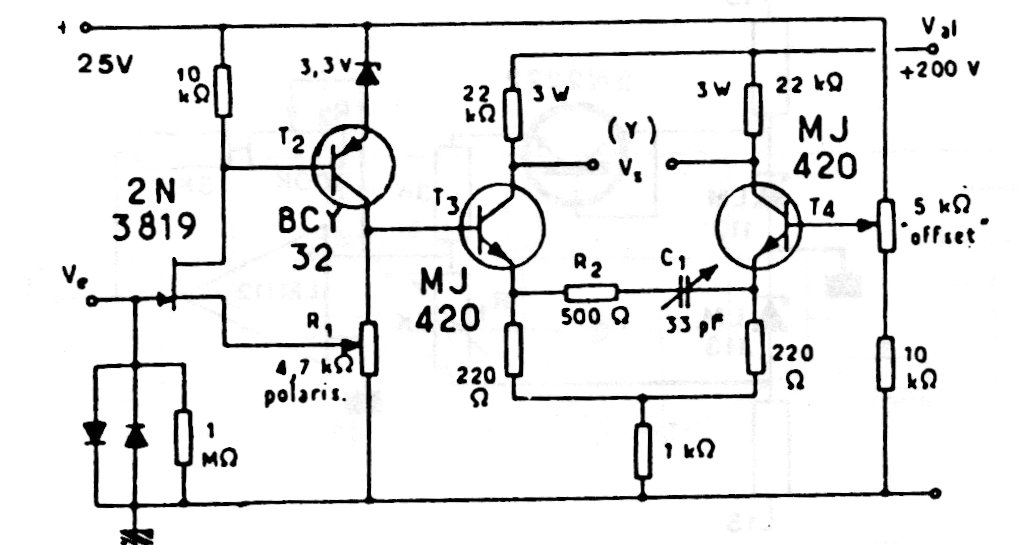

This circuit was found in documentation from the 90s, being indicated for the deflection of cathode ray tubes. It consists of a DC voltage amplifier and operates at frequencies up to 1 kHz.
