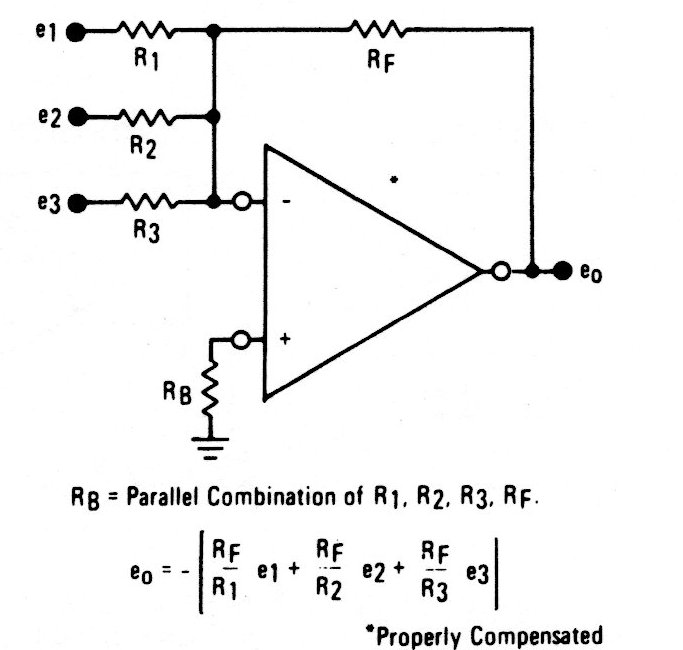

This configuration applies to common operational amplifiers. This circuit is from the datasheet of the MC1539, like the 741. The formula for the components used is next to the diagram. The source must be symmetrical in case of negative input voltages.
