15 V Regulator MC1539 (CB19674E)

Details
Written by: Newton C. Braga

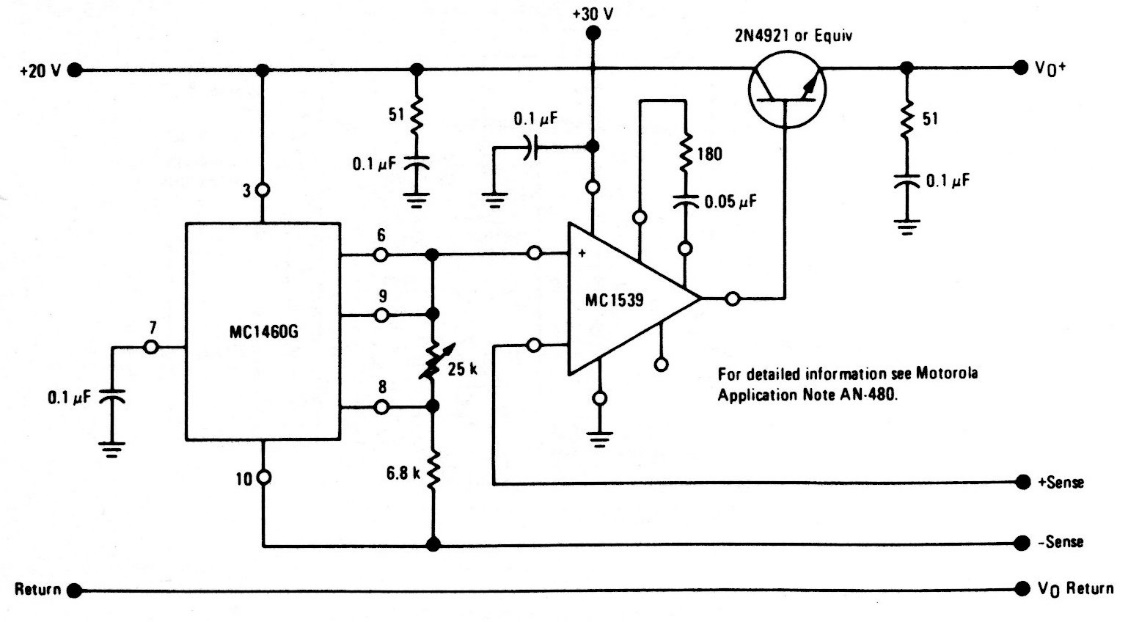

The circuit is from the MC1539 manual, an operational one close to the 741. The transistor admits equivalent and must be mounted in a good heat sink.




| Clique na imagem para ampliar |
