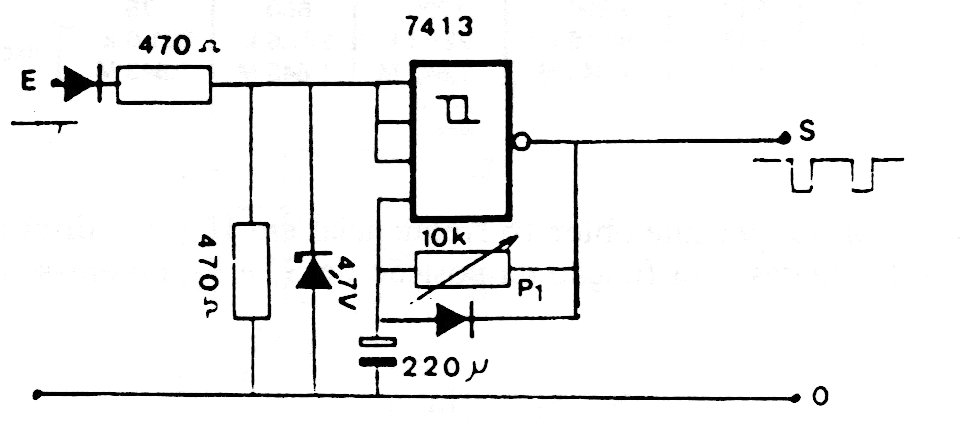

In fact, this circuit can generate 50 Hz or 60 Hz signals depending on the power supply. The input signal comes from the 6 to 12 V secondary of a transformer connected to the power grid. The waveform of the generated signal appears in the diagram.
