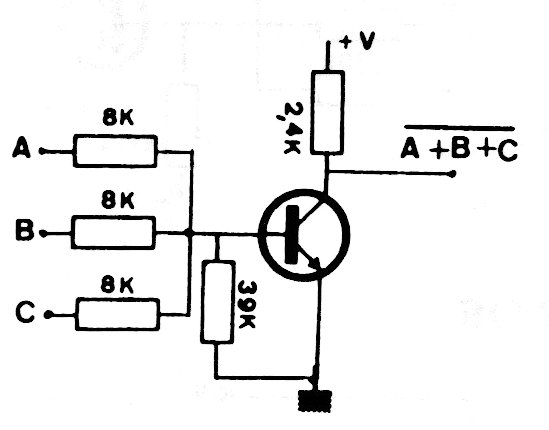

This NOR or NO-OR function circuit with a general-purpose transistor can be powered by voltages from 5 to 12 V, according to the interfacing logic. The circuit acts as a shield.
NOR Gate with a Transistor II (CB19886E)
- Details
- Written by: Newton C. Braga
