SCR Mobile Alarm (CB19975E)

Details
Written by: Newton C. Braga

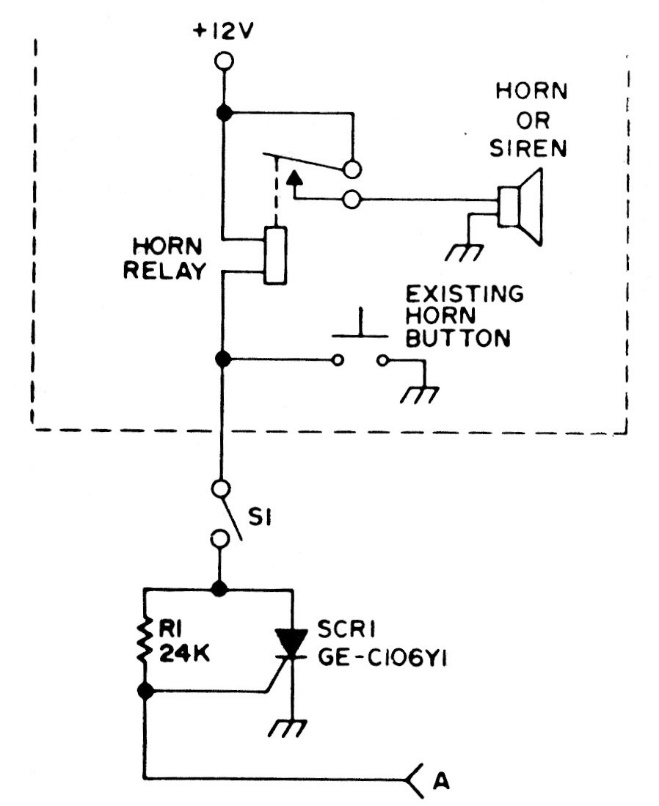

This circuit was found in a 1975 documentation. The SCR can be of any type and in this case, we have the horn activation. The relay must be a 12 V type with high contact current.
