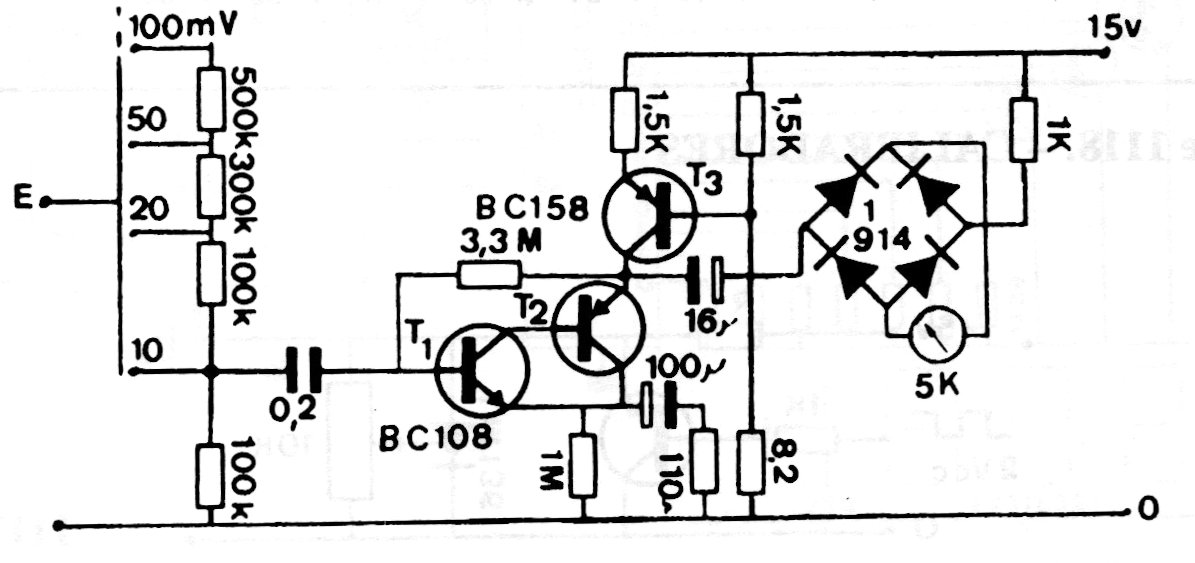

This circuit was obtained in an old documentation, but it can be easily implemented with BC548 and BC558 transistors. The indicator can be an ordinary multimeter at a low range of continuous voltages. The input resistance is 10 M ohms / Volt. The supply is made with 15 V.
| Clique na imagem para ampliar |
