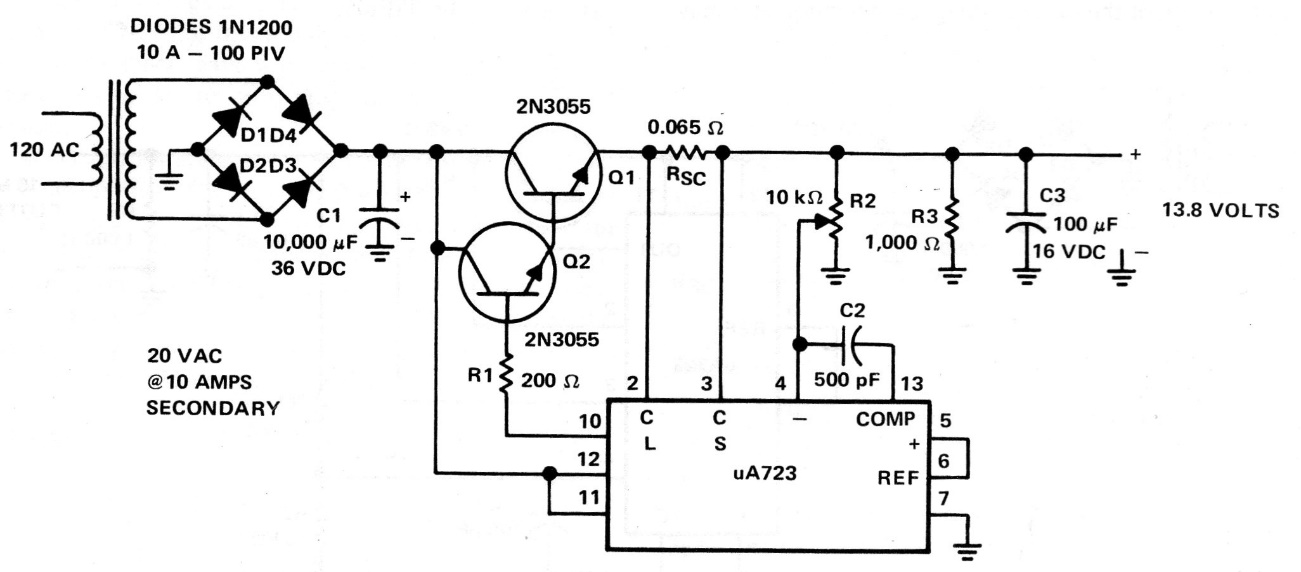

Although newer voltage regulator integrated circuits exist, the uA723 is still very common in applications of this type. This circuit is from Texas Instruments documentation and the maximum current is 8 A. The 2N3055 must have excellent heat sinks.
