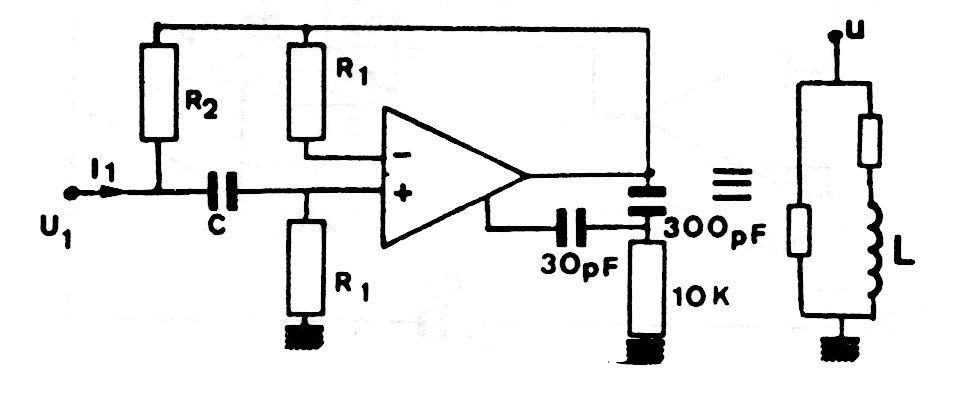

This circuit simulates an inductance whose value depends on the current and the input voltage. Capacitor C and resistors R1 determine this inductance. The operating power supply, with compensation, must be symmetrical.
