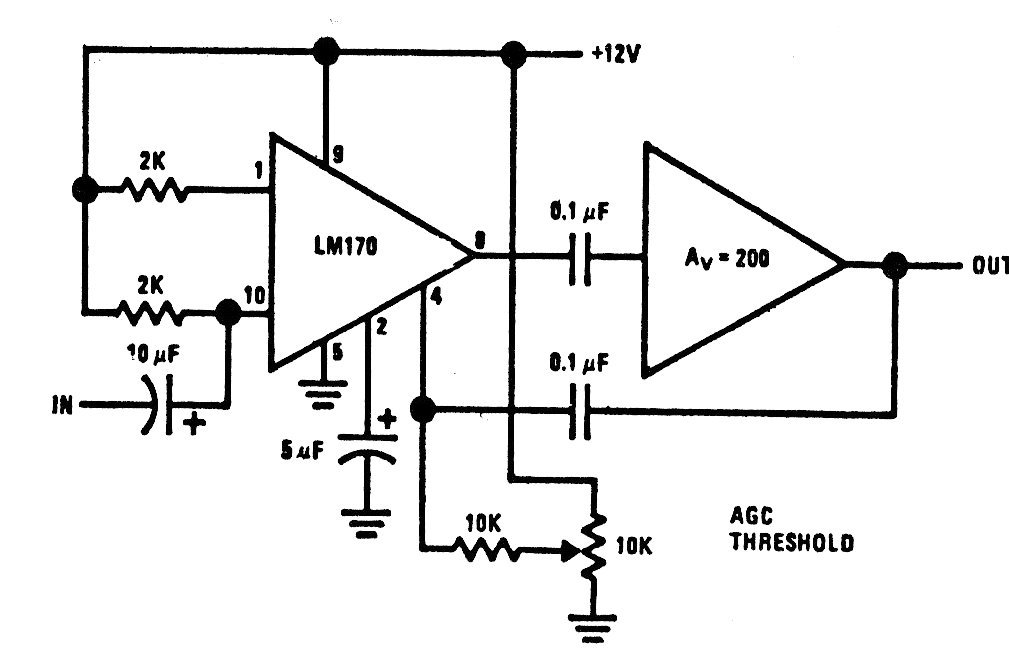

Word Compressor with Gain Control (CB19997E)

We found this circuit in a documentation from the 70s. The circuit uses amplifiers from the time, but it can be implemented with modern equivalents.
