Test Circuit for CMRR (CB19725E)

Details
Written by: Newton C. Braga

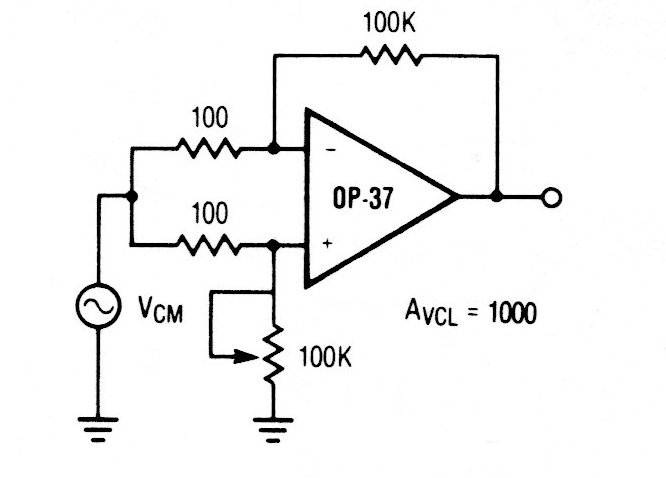

With this circuit, from an old operational datasheet, it is possible to measure the CMRR, rejection in common mode of an operational one. The power supply must be symmetrical.




| Clique na imagem para ampliar |
