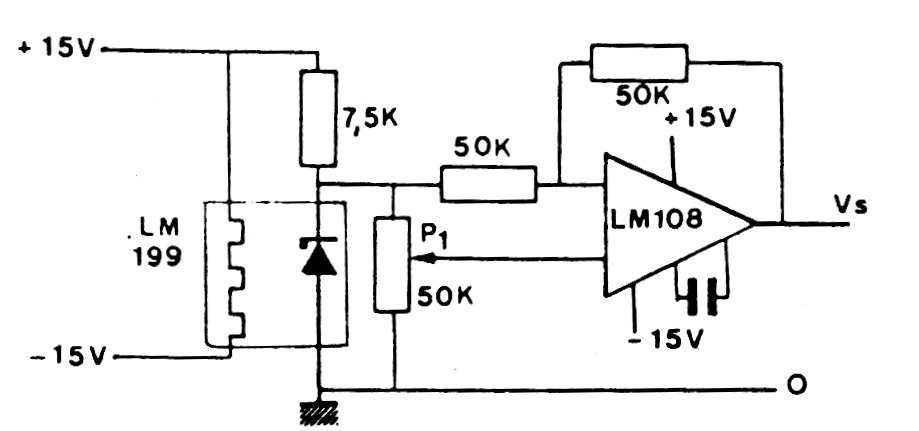

This bipolar reference of temperature compensated voltage was found in an old documentation on linear integrated circuits. The integrated circuit used is not very common today, but the configuration can be adapted to use modern operational amplifiers.
