MDTL and MTTL Power Shield (CB19755E)

Details
Written by: Newton C. Braga

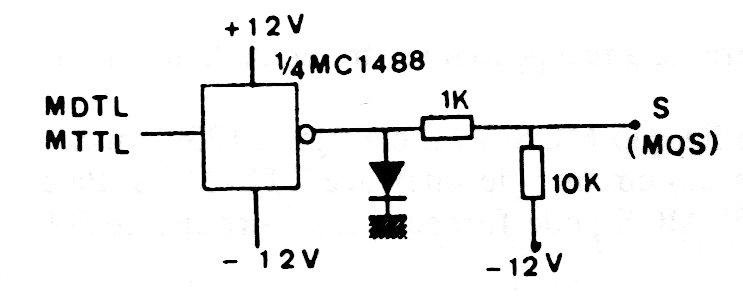

This circuit uses a power component that is not common today, being recommended by Motorola in the 90's. Note the need for symmetrical power supply.
