5V Calibrator (CB20759E)

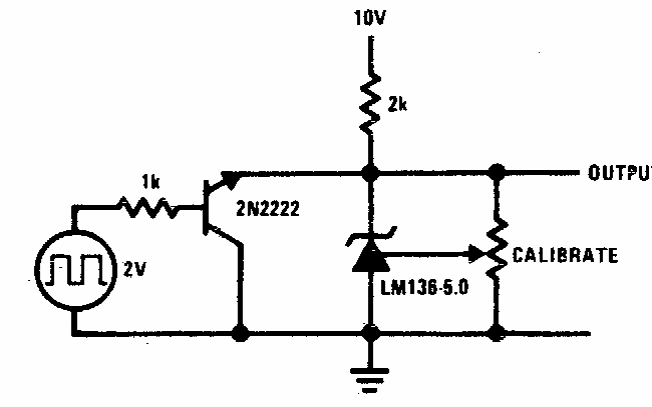

This circuit generates a 5V rectangular signal. The circuit is suitable for calibrating TTL circuits. We found it in an old American documentation.

| Clique na imagem para ampliar |
