9 V Transistor Regulator (CB20289E)

Details
Written by: Newton C. Braga

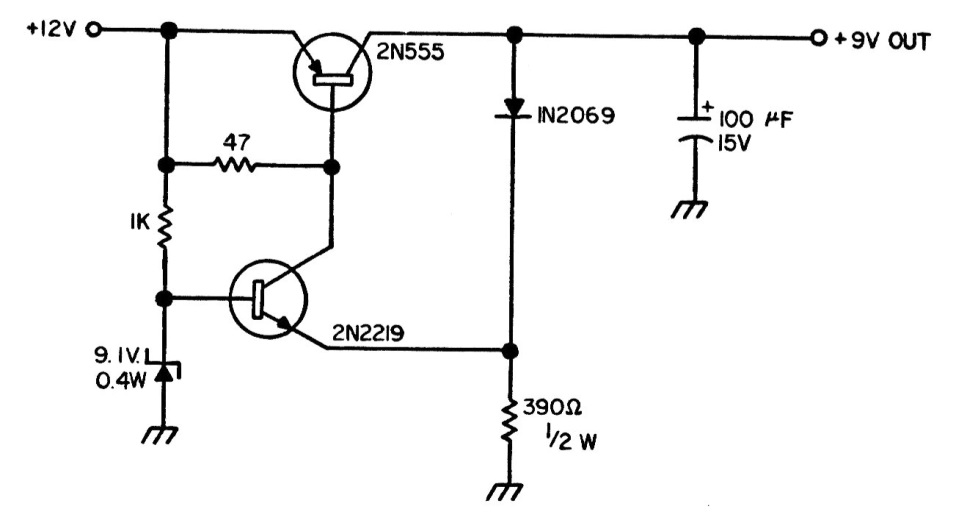

This regulator can use BD'136 as the main transistor and as a reference next to a BC548 zener. The circuit provides a voltage of 9V from 12 to power devices that use batteries.
