450 MHz Preamplifier (CB20270E)

Details: Written by: Newton C. Braga

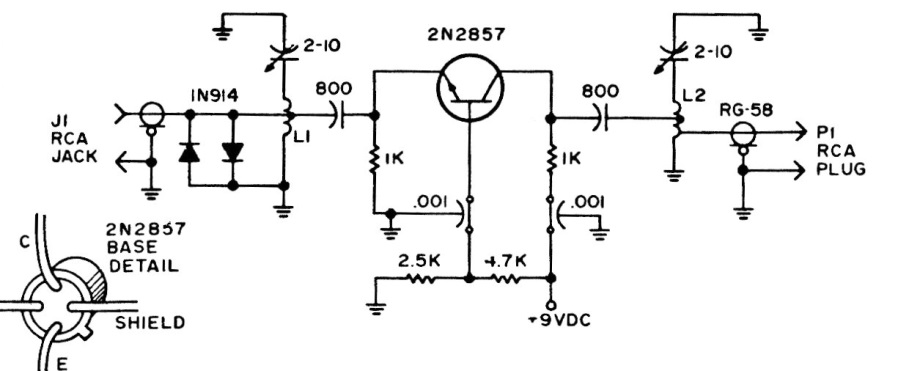

This RF preamplifier for the 450 MHz band was found in an amateur radio documentation from the 1980s. The transistor supports an equivalent operating at the recommended frequency.

| Clique na imagem para ampliar |
