Light Alarm 741 (CB20305E)

Details
Written by: Newton C. Braga



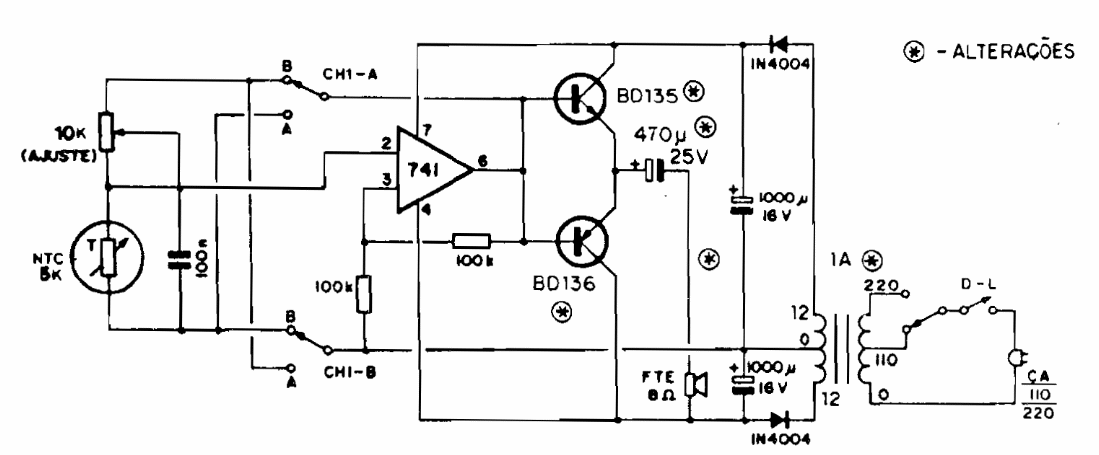

This circuit can function as both a light alarm and a shadow alarm. The components are common. The circuit includes the power supply. Output transistors must be mounted on heatsinks.
