RF Preamplifier (CB20252E)

Details
Written by: Newton C. Braga

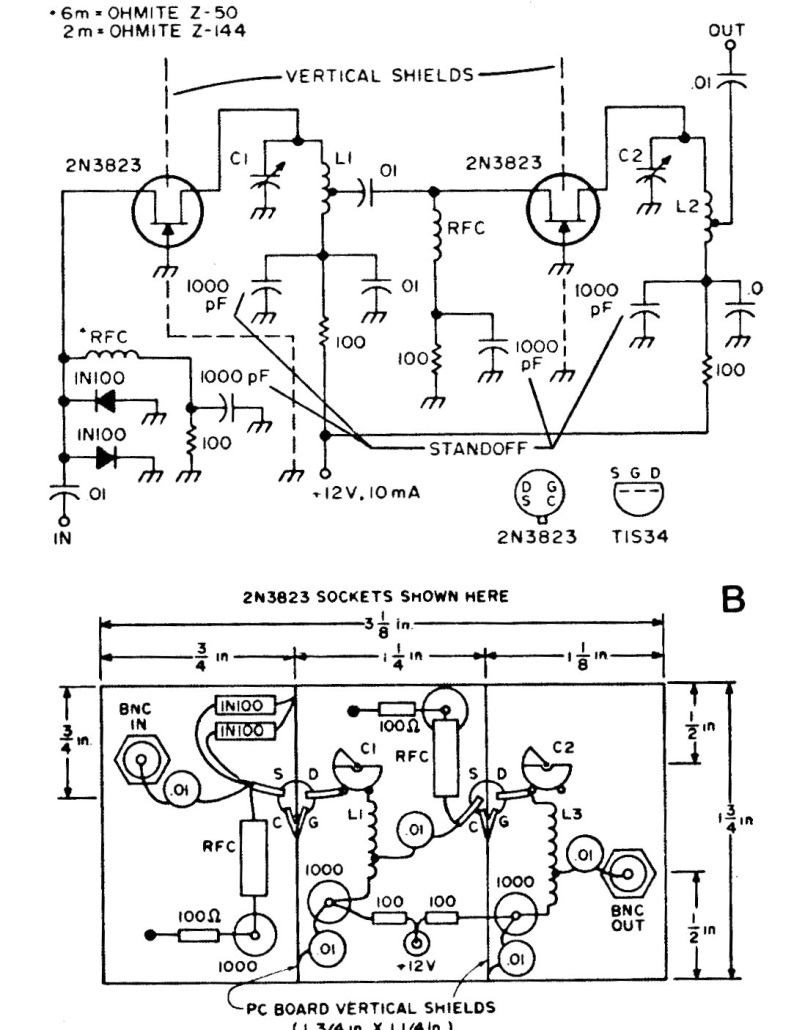

This preamplifier for the 6 or 2-meter range was obtained from an American documentation from the 1980s. FETs can be modern equivalents and no information about the coils is given.




| Clique na imagem para ampliar |
