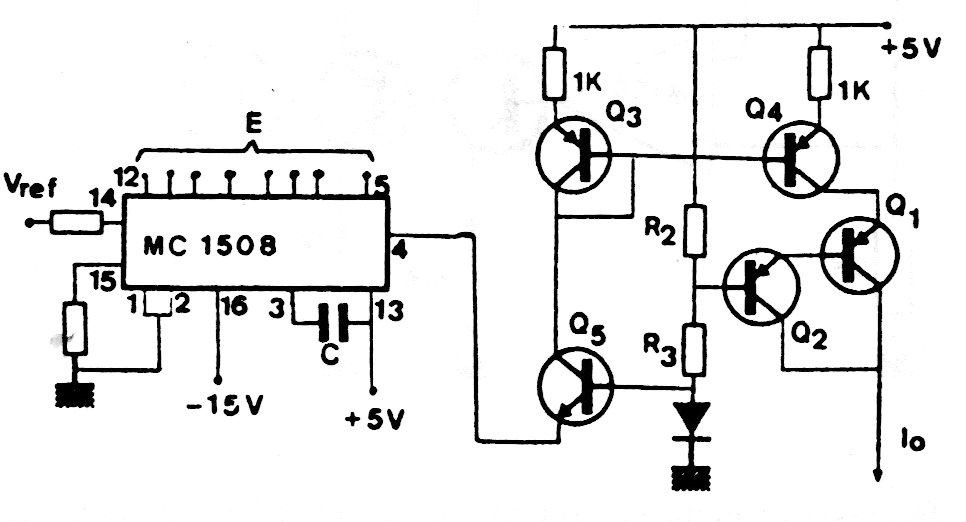

The integrated circuit used in this application is not very common. Transistors and resistors depend on the desired current that can be programmed digitally. Resistors without value are 100k.
| Clique na imagem para ampliar |
Programmable Current Shield (CB19955E)
- Details
- Written by: Newton C. Braga
