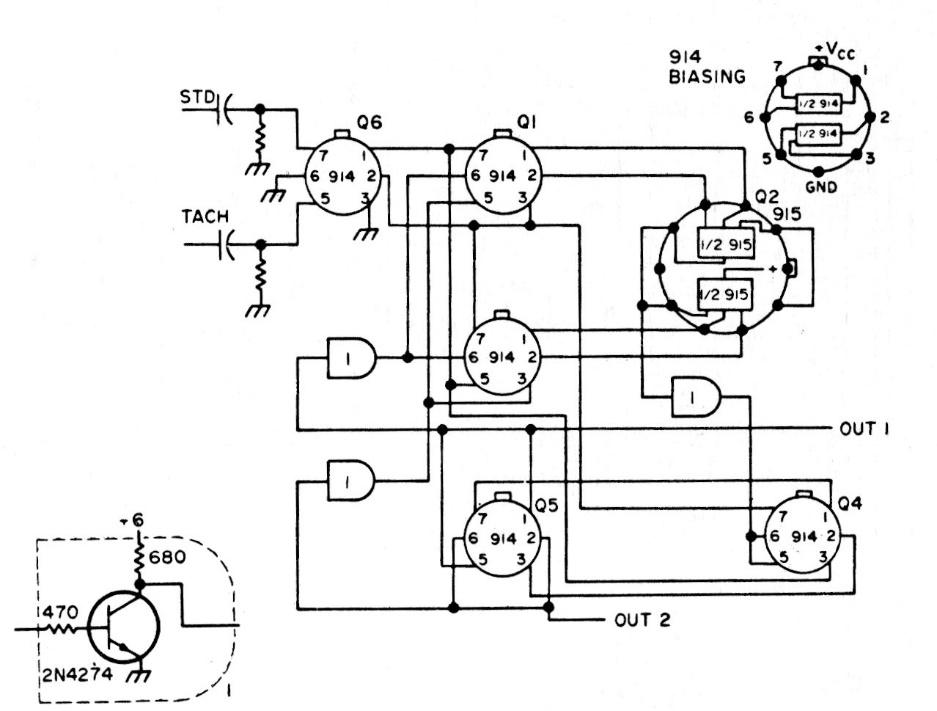

This circuit also functions as a phase detector. The components used are not common. We found this configuration that can be adapted to operate with more modern components in an American documentation from the 80's.
| Clique na imagem para ampliar |
Frequency Comparator (CB20113E)
- Details
- Written by: Newton C. Braga
