Micro Buzzer (CB20336E)

Details
Written by: Newton C. Braga

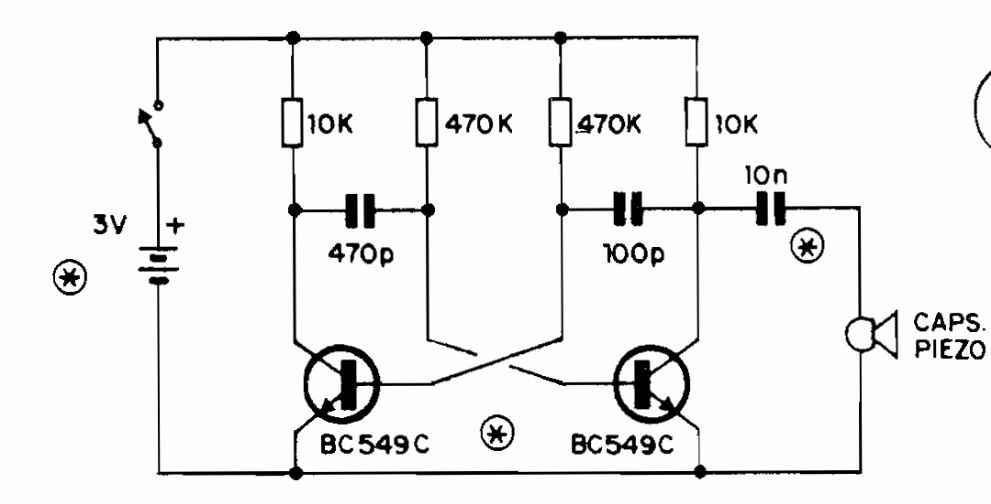

In the figure we have a simple way to produce tone in a piezoelectric transducer. The frequency depends on the capacitors and the supply can be done with voltages from 1.5 to 6 V.




| Clique na imagem para ampliar |
