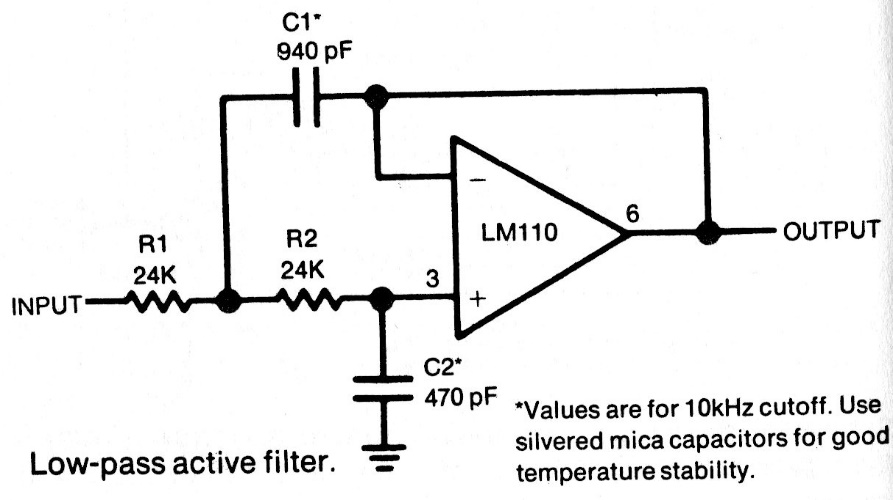

Active Low Pass Filter (CB20091E)

Details
Written by: Newton C. Braga



This circuit appears on this site from different sources. This is from documentation from the 1980s. The operating system used is uncommon and can be replaced by a more modern equivalent.
