Current or voltage differential alarm (CB20629E)

Details
Written by: Newton C. Braga

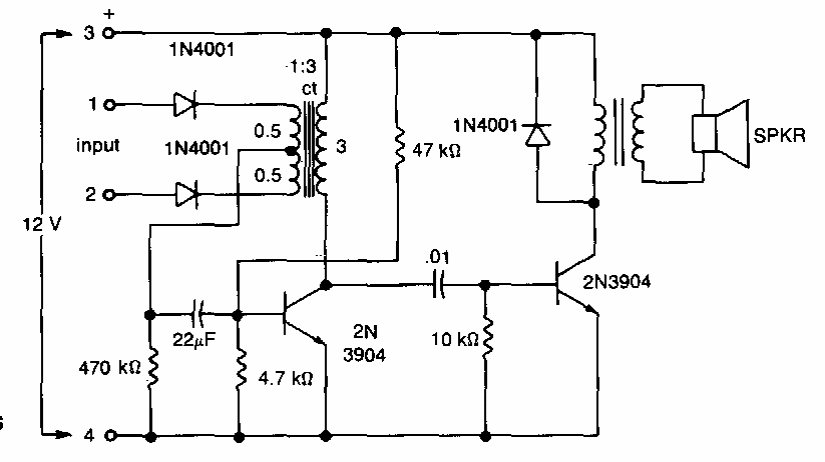

We found this circuit in documentation from the 1980s. The transformer is of the low voltage type with a 1: 3 turn ratio and the transistors can be of general-purpose types.






| Clique na imagem para ampliar |
